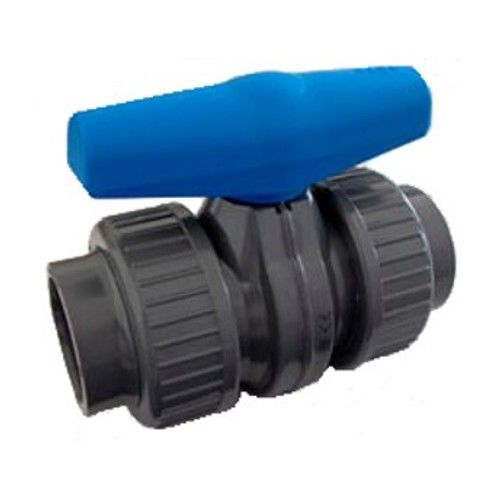

The GF Type 355 Ball Valve is characterised by a Monobloc construction and is ideally suited to basic applications with water. The Type 355 is a true union valve perfectly suited to swimming pool and water treatment applications.
• Solvent Cement Sockets
• Full Port Design
• Monobloc Structure
• Single Stem Seal
• Removable Handle (Available in a range of colours on request)
• Blue Handle as standard
Material - Body: PVC-U (Grey)
Material - Ball Seals: PTFE
Material - O-Rings: EPDM
Pressure Rating: PN16 (1600 kPa)
Dimension D: 78mm
Dimension H: 77mm
Dimension L: 132mm
Dimension L1: 116mm
Dimension L2: 74mm
Dimension z: 80mm
Weight: 414g
Manufacturer: Georg Fischer - Switzerland
