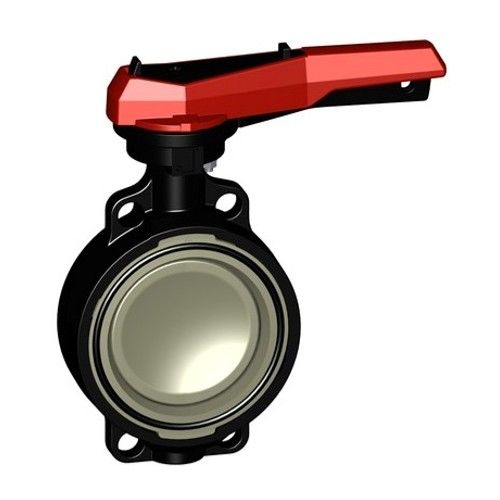

The GF Type 567 Butterfly Valve is Georg Fischer's premium butterfly valve range. The Type 567 is a premium quality valve perfectly suited to swimming pool and water treatment applications where only the best will do.
• Hand Lever with Ratchet Settings
• Adjustable In 5° Increments
• Lockable Handle
• Approximately half the weight of a comparable metal valve
• Double Shaft Seals On Both Sides
• Double Eccentric Operating Principle
Material - Body: PVC-U (Grey)
Material - Lever: PPGF
Material - Seals: EPDM
Pressure Rating: PN10 (1000 kPa)
Suits Flanges: ISO 7005 PN10, DIN 2501 PN10, ANSI/ASME B 16.5 Class 150, BS 1560, BS4504, JIS B 2220, EN 1092 PN10.
Note: Not compatible with AS 2129:1994 flanges (Table A to T).
Dimension D: 23mm
Dimension D1 min: 290mm
Dimension D1 max: 295mm
Dimension d2: 267mm
Dimension H: 435mm
Dimension H1: 158mm
Dimension H2: 210mm
Dimension H3: 67mm
Dimension L: 73mm
Dimension L1: 140mm
Dimension L2: 408mm
Dimension Q1: 178mm
Weight: 6570g
Manufacturer: Georg Fischer - Switzerland
