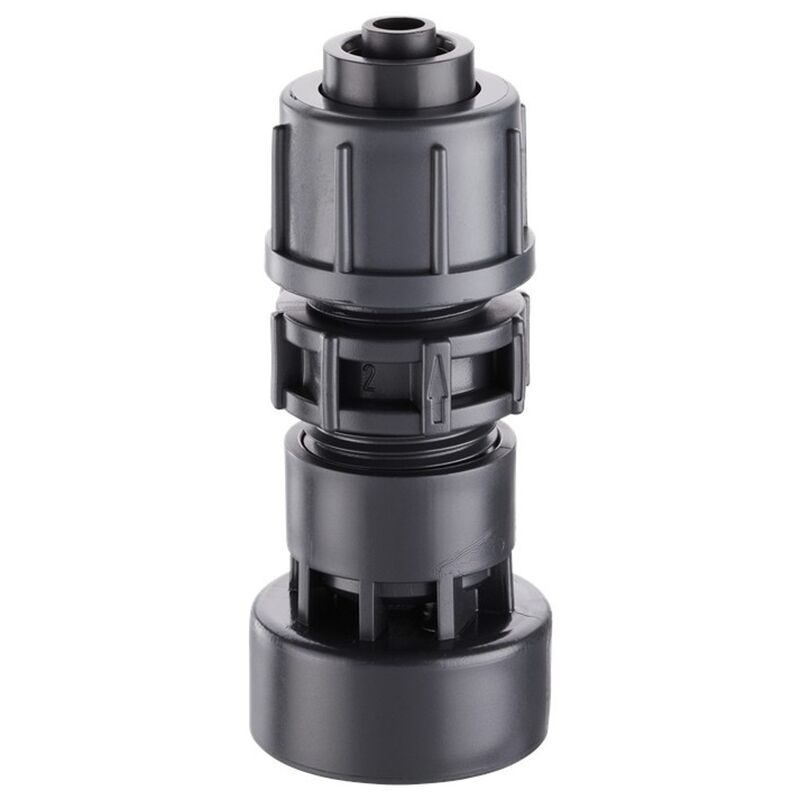

Grundfos Footvalve
(Housing PE / Seals PTFE)

Grundfos Chemical Footvalve Assembly. Installed at lower end of suction tubing. Incorporates weight and strainer (0.8mm mesh)Prevents back flow utilising one way valve incorporated into unit.

Includes Cap Nut along with Insets and Sleeves to suit 4/6, 6/9, 6/12 and 9/12 Tubing.

Material - Body: Polyethylene (PE)
Material - Seals: Polytetrafluoroethylene (PTFE)
Material - Ball: Ceramic
Tubing Connection: 4/6mm, 6/9mm, 6/12mm, 9/12mm Included
Check Valve: non spring loaded
Max. Capacity: 60 l/h

Suitable for Commercial Pool Applications utilising Sodium Hypochlorite or Hydrochloric Acid.
