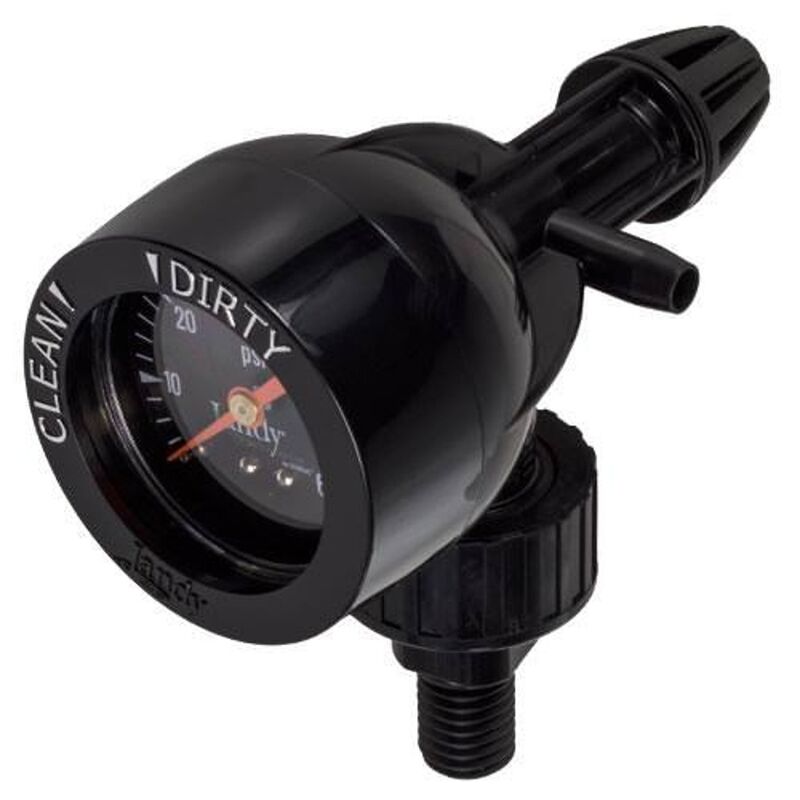

Jandy Combination Pressure Gauge and Air Release Assembly with Adjustable Twin Pointers.
Twin Adjustable "Clean / Dirty" Pointers are set using hand dial and can be adjusted to indicate normal running pressure and when filter backwash is due.
Incorporates an air release valve making it the perfect pressure gauge for filters. Air release outlet can be fitted with tubing to divert air/water.
Dial Diameter: 46mm
Dial Range: 0 psi to 60 psi
Connection Position: Bottom
Connection Thread: ⅝" UNC
Material - Casing: Plastic
Material - Lens: Plastic
Material - Wetted Parts: Brass
Material - Connection: Plastic
Weight: 186g
Manufacturer: Jandy - USA
