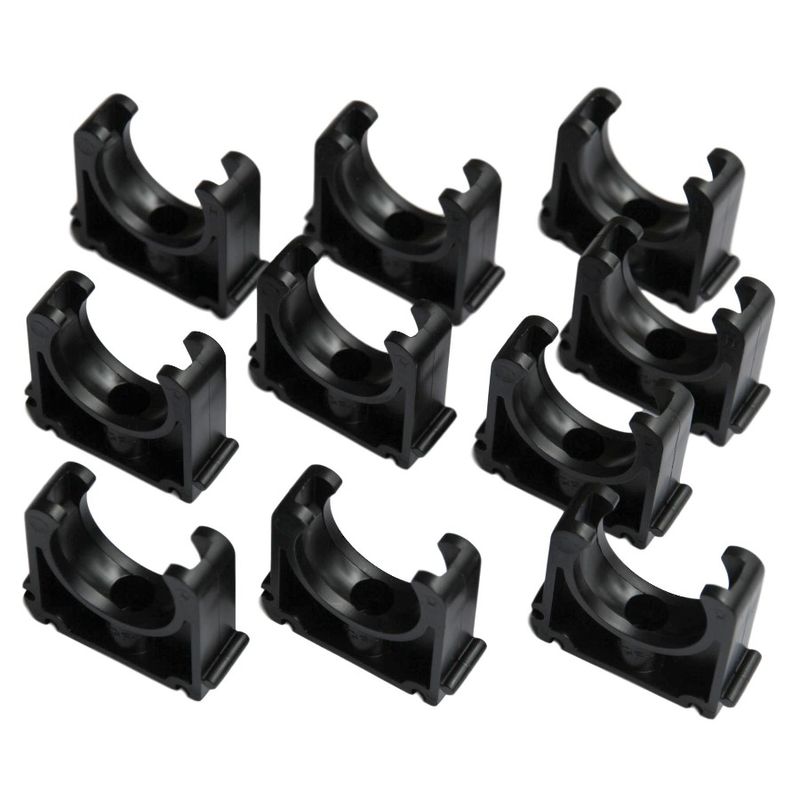

Georg Fischer Type 061 KLIP-IT Pipe Clips are a high quality and truly modular pipe support system.
Joining Lugs on the sides of the pipe clip allow multiple clips to be neatly joined and the common positioning of the Joining Lugs allows for differing pipe clip sizes to be joined together.
15mm to 50mm models are manufactured at a height to match Type 546 and 543 Ball Valves. 32mm Models and larger are fitted with a safety clip.
KLIP-IT Pipe Clips can be fixed directly to any surface or can be installed with one or more KLIP-IT Spacers, raising the clip by 20mm per spacer. The KLIP-IT is a versatile pipe clip system perfectly suited to swimming pool and water treatment applications.
Material: Polypropylene (Black UV Resistant)
Dimension d: 33.7mm (Suits 25mm PVC Pressure Pipe)
Dimension D: 6mm
Dimension D1: 10mm
Dimension H: 36mm
Dimension H1: 10mm
Dimension H2: 6mm
Dimension H3: 16mm
Dimension L1: 24mm
Dimension L2: 27mm
Recommended Fixing Screw Size: M5
Weight: 12g
Manufacturer: Georg Fischer - Switzerland
