Mitutoyo Thread Pitch Gauge Set
Metric / Unified / Whitworth
188-130 / 188-111 / 188-101

188-Set
Price: $146.80
Available

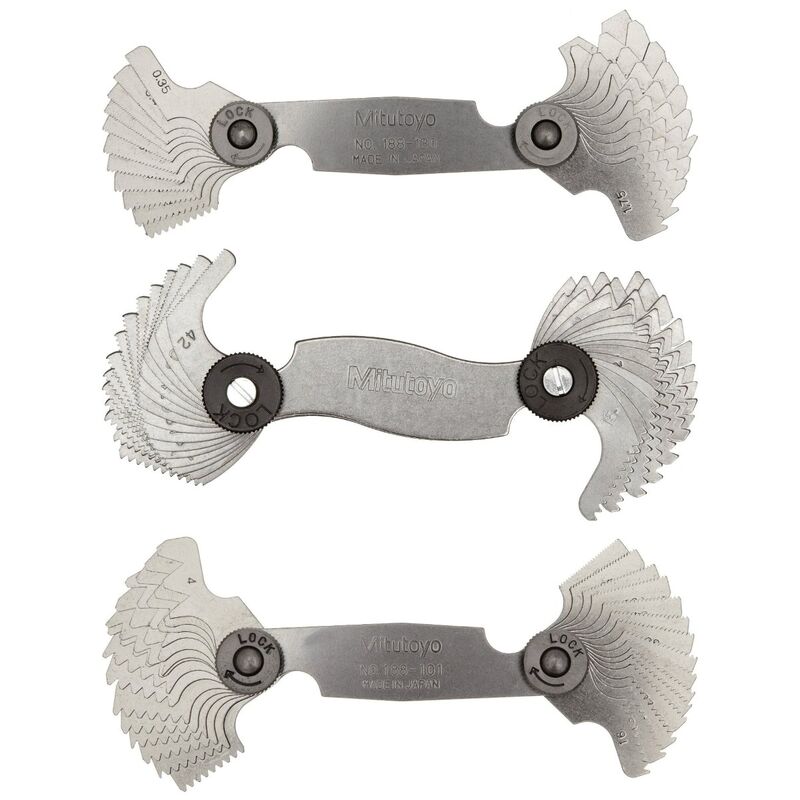

Set Of Three Mitutoyo Thread Pitch Gauges (Metric, Unified & Whitworth)

Mitutoyo Japan are the industry standard in precision measuring equipment. The Series 188 range of thread pitch gauges are available in Metric, Unified and Whitworth.

METRIC Pitch Gauge (188-130):
Range:
0.35 - 6.0mm (22 Leaves)
Leaves: 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 and 60° Angle Gauge
Length: 70mm
Weight: 56g

UNIFIED Pitch Gauge (188-111):
Range: 4 - 42 TPI (30 Leaves)
Leaves: 4, 4½, 5, 5½, 6, 7, 8, 9, 10, 11, 11½, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
Length: 70mm
Weight: 66g

WHITWORTH Pitch Gauge (188-101):
Range: 4 - 42 TPI (30 Leaves)
Leaves: 4, 4½, 5, 5½, 6, 7, 8, 9, 10, 11, 11½, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
Length: 70mm
Weight: 66g

Thread pitch is stamped on each gauge.

Mitutoyo Model Nos 188-130, 188-111, 188-101
