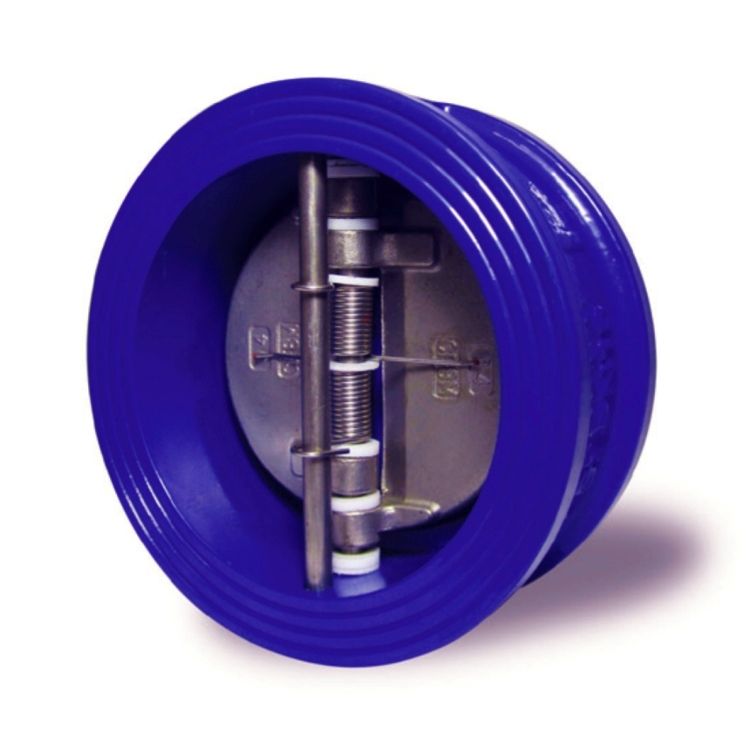

Duo Check Wafer Check Valve DN350
• Dual springs for quicker activation, long life and even distribution of force over plates.
• Fusion Bonded Epoxy coated body (internal and external.
• Long leaf springs (prevents rubbing of discs on seats).
Material - Body(1): Cast Iron
Material - Disc(2): Stainless Steel 316
Material - Stem(3): Stainless Steel 316
Material - Spring(4): Stainless Steel 316
Material - Bearings(5/6): PTFE
Material - Sealing O-Ring(7): EPDM
Material - Screw(8): Stainless Steel 316
Material - Seat(9): EPDM
Temperature Range: -20°C to 100°C
Dimension FxF: 127mm
Dimension ØD: 444mm
Dimension ØD1: 360mm
Dimension ØD2: 298mm
Dimension R: 170mm
Weight: 55000g
