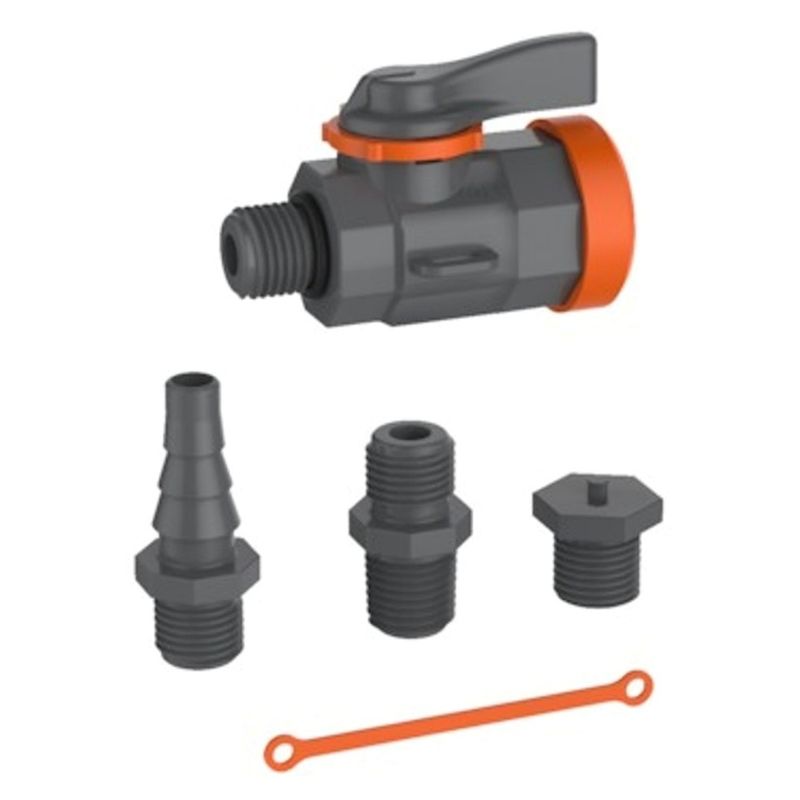

The GF Type 522 Laboratory Ball Valve is robust, compact and reliable. The valve kit includes the following:
- Hose Nozzle
- Blind Plug
- Double Nipple
- 2 x O-rings
- Clip Tie
- Locking & Metering Ring
Material - Body: PVC-U (Grey)
Material - Ball Seals: PTFE
Material - O-Rings: EPDM
Pressure Rating: PN10 (1000 kPa)
Dimension G1: ¼" BSP
Dimension G2: ¼" BSP
Dimension A: 26mm
Dimension B: 28.2mm
Dimension D: 28mm
Dimension H: 25.5mm
Dimension L: 56mm
Dimension t: 13.5mm
Dimension t1: 12mm
Weight: 50g
Manufacturer: Georg Fischer - Switzerland
