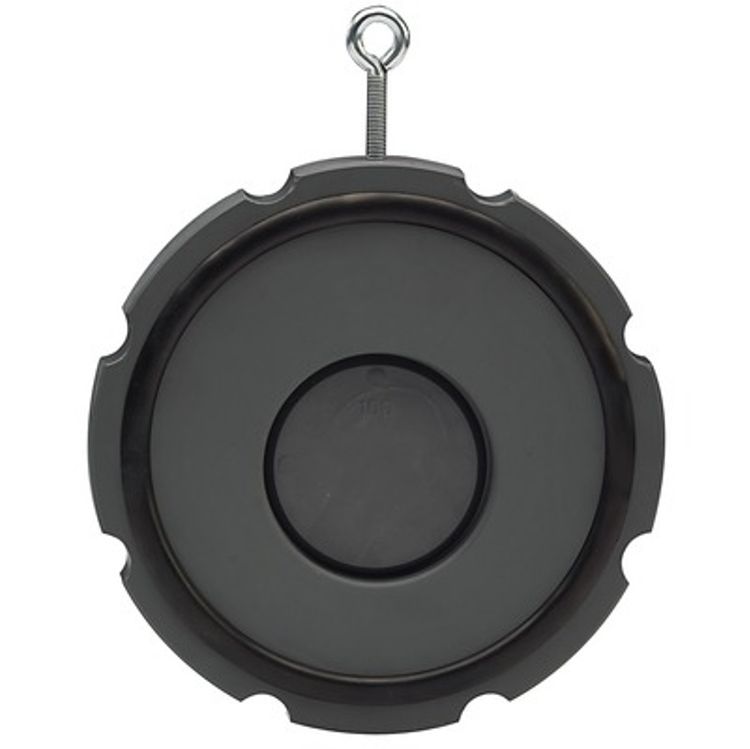

The GF Type 369 Spring Check Valve is Georg Fischer's premium spring wafer check valve range. The Type 369 is a premium quality valve perfectly suited to swimming pool and water treatment applications where only the best will do.
• Supporting eyelets for simple fitting.
• Suitable for vertical or horizontal mounting.
• Robust maintenance free design.
Material - Body: PVC-U (Grey)
Material - Seals: EPDM
Material - Spring: Stainless Steel (316)
Pressure Rating: PN6 (600 kPa)
Opening Pressure (Vertical): 1 kPa
Opening Pressure (Horizontal): 0.1 kPa
Min. Sealing Water Column: 19.6 kPa
Dimension D: 279mm
Dimension D1: 256mm
Dimension D2: 154mm
Dimension D3: 275mm
Dimension L: 35mm
Dimension L1: 152mm
Dimension H: 38mm
Weight: 2100g
Manufacturer: Georg Fischer - Switzerland
