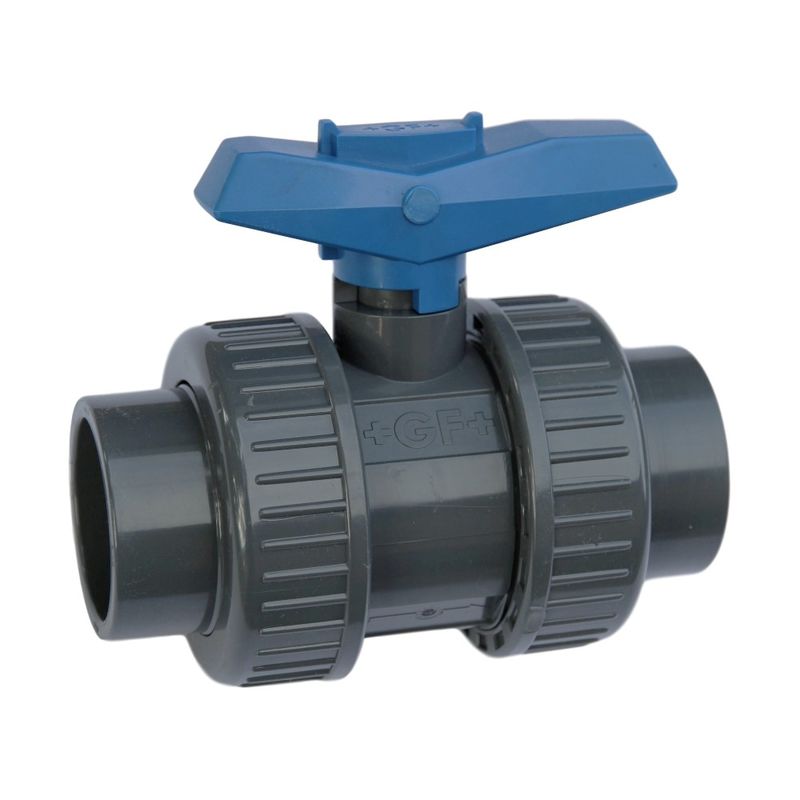

The GF Type 375 PVC Ball Valve complements the Type 546 PVC Ball Valve and is suited to non-critical applications. The Type 375 is a true union valve perfectly suited to swimming pool and water treatment applications.
• Solvent Cement Sockets (Threaded BSP Valve Ends available separately)
• Full Port Design
• 10,000 Life Cycle
• Blow-out Proof Stem
• Double Stem Seals
• Fully Serviceable and Adjustable Seat Carrier
• Handle with integrated tool for removing / adjusting the union bushing
Material - Body: PVC-U (Grey)
Material - Ball Seals: PTFE
Material - O-Rings: EPDM
Pressure Rating: PN16 (1600 kPa)
Dimension D: 94mm
Dimension H: 90mm
Dimension L: 140mm
Dimension L1: 119mm
Dimension L2: 72mm
Dimension L3: 70mm
Dimension z: 78mm
Weight: 690g
Manufacturer: Georg Fischer - Switzerland
