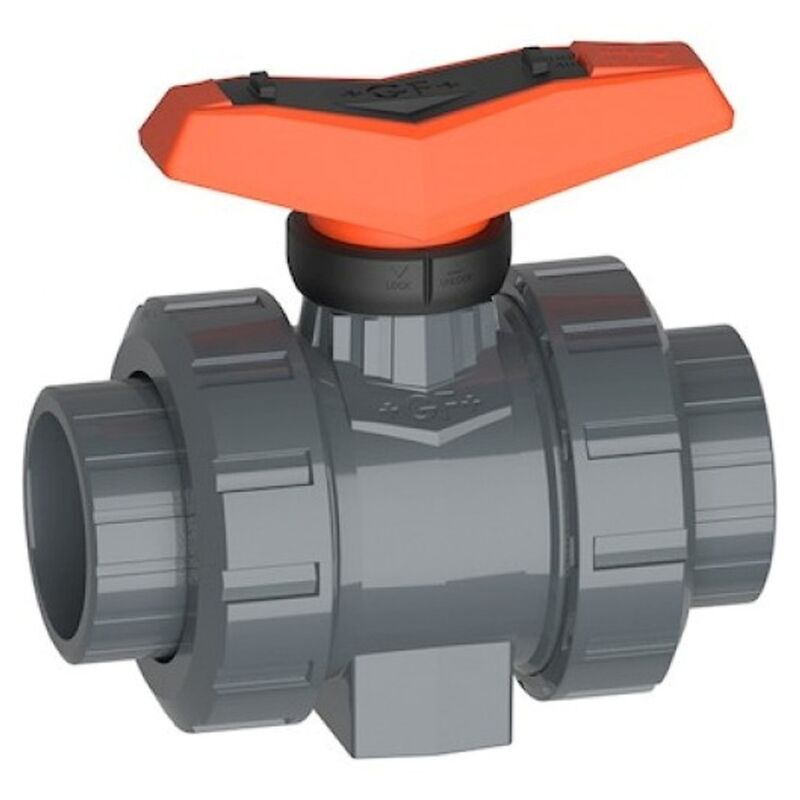

The GF Type 546 Ball Valve is Georg Fischer's premium ball valve range and is suited to critical applications. The Type 546 is a true union valve perfectly suited to swimming pool and water treatment applications where only the best will do.
• Solvent Cement Sockets
• Full Port Design
• Blow-out Proof Stem
• Double Stem Seals
• Fully Serviceable and Adjustable Seat Carrier
• Handle with integrated tool for removing / adjusting the union bushing
• Integrated stainless steel threaded mounting inserts
Material - Body: PVC-U (Grey)
Material - Ball Seals: PTFE
Material - O-Rings: EPDM
Pressure Rating: PN16 (1600 kPa)
Dimension D: 84mm
Dimension H: 90mm
Dimension L: 146mm
Dimension L1: 128mm
Dimension L2: 85mm
Dimension L4: 45mm
Dimension L5: 54mm
Dimension L6: 74mm
Dimension M: 8mm
Dimension z: 90mm
Weight: 585g
Manufacturer: Georg Fischer - Switzerland
