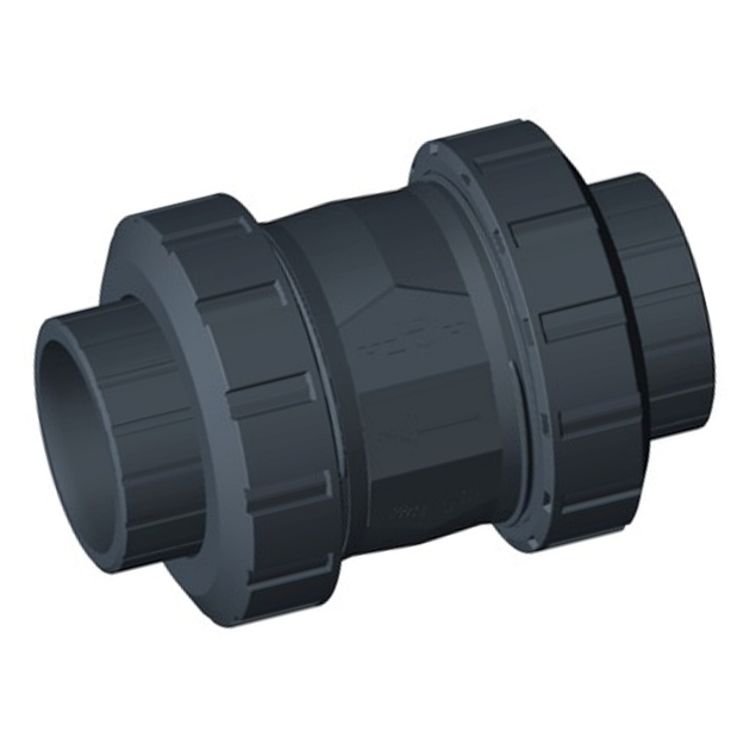

The GF Type 562 Spring Check Valve represents a new generation of check valve. Georg Fischer have completely redesigned the inner workings of the check valve creating a check valve with unsurpassed efficiency and reliability. The Type 562 is a true union valve perfectly suited to swimming pool and water treatment applications.
• Solvent Cement Sockets
• For vertical or horizontal installation
• Vibration free even at high flow velocity
• Flow optimized return cone, double guided
• Compact installation length (Identical to Type 546 Ball Valves)
Material - Body: PVC-U (Grey)
Material - Seals: EPDM
Material - Spring: Stainless Steel (304)
Pressure Rating: PN16 (1600 kPa)
Dimension DN: 100mm
Dimension D: 238mm
Dimension L: 301mm
Dimension L2: 164mm
Dimension z: 174mm
Weight: 8060g
Manufacturer: Georg Fischer - Switzerland
