Georg Fischer GF Type 591 Ventilation Valve 80mm
Georg Fischer GF Type 591 Ventilation Valve 80mm
Georg Fischer GF Type 591 Ventilation Valve 80mm
Georg Fischer GF Type 591 Ventilation Valve 80mm

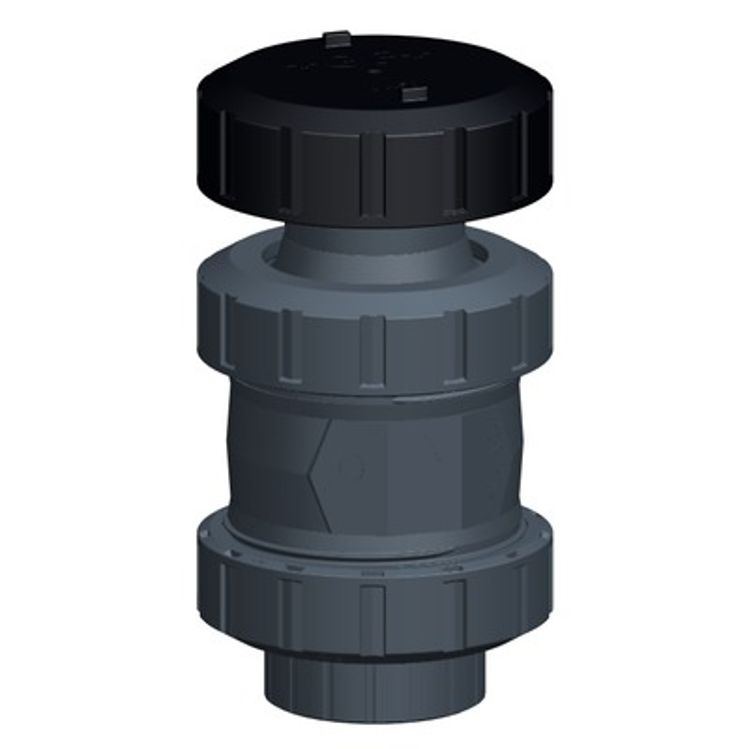

Georg Fischer (GF) Type 591 Ventilation Valve 80mm

161 591 109
Price: $583.00
Available

The Type 591 Ventilation Valves from Georg Fischer are exceptionally reliable. The Type 591 Ventilation Valve will remain open while a vessel or pipe is filling, allowing air to escape, closing when the internal float is lifted by the rising liquid. When a vessel or pipe is draining, the vacuum created allows the float to drop, allowing air to flow back in.

An innovative PP-H (PVDF) float on the air and venting valve type 591 has a very low density of 0.91 g/cm³ and ensures complete and reliable venting of the pipe system. At the same time, the valve prevents media overflow.

• Solvent Cement Socket & Threaded Socket Included
• With protection cap up to DN50 made from PP-GF, DN65-100 made from POM
• Designed for easy installation and removal
• Compact installation length
• Self-acting bleeding and venting

Material - Body: PVC-U (Grey)
Material - Seals: EPDM
Material - Float: PP-H
Pressure Rating: PN16 (1600 kPa)

Dimension d: 80mm
Dimension D: 200mm
Dimension L: 277mm
Dimension t: 48mm

Weight: 5060g

Manufacturer: Georg Fischer - Switzerland
