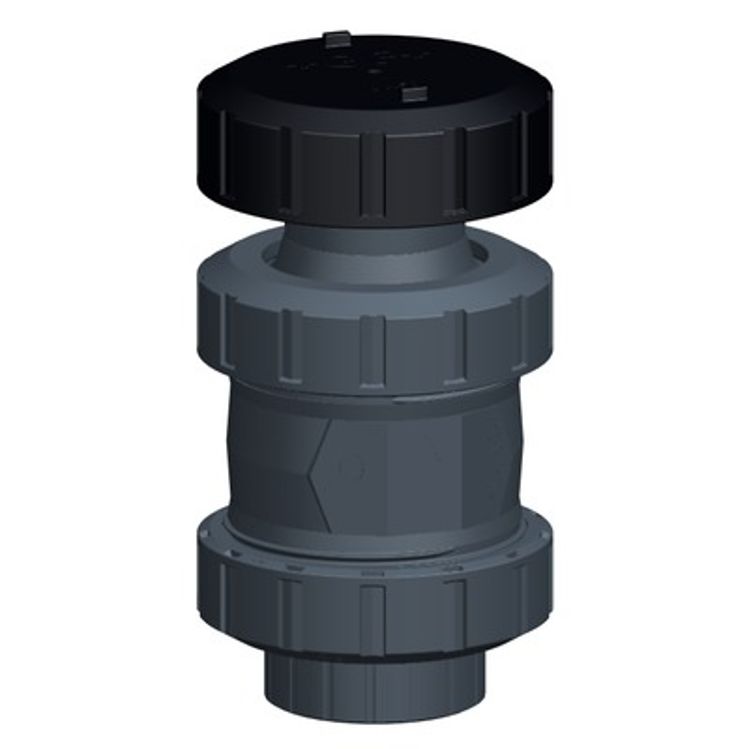

The Type 591 Ventilation Valves from Georg Fischer are exceptionally reliable. The Type 591 Ventilation Valve will remain open while a vessel or pipe is filling, allowing air to escape, closing when the internal float is lifted by the rising liquid. When a vessel or pipe is draining, the vacuum created allows the float to drop, allowing air to flow back in.
An innovative PP-H (PVDF) float on the air and venting valve type 591 has a very low density of 0.91 g/cm³ and ensures complete and reliable venting of the pipe system. At the same time, the valve prevents media overflow.
• Solvent Cement Socket & Threaded Socket Included
• With protection cap up to DN50 made from PP-GF, DN65-100 made from POM
• Designed for easy installation and removal
• Compact installation length
• Self-acting bleeding and venting
Material - Body: PVC-U (Grey)
Material - Seals: EPDM
Material - Float: PP-H
Pressure Rating: PN16 (1600 kPa)
Dimension d: 100mm
Dimension D: 238mm
Dimension L: 320mm
Dimension t: 58mm
Weight: 8060g
Manufacturer: Georg Fischer - Switzerland
