Georg Fischer GF Type 595 Vacuum Breaker Valve 40mm
Georg Fischer GF Type 595 Vacuum Breaker Valve 40mm
Georg Fischer GF Type 595 Vacuum Breaker Valve 40mm
Georg Fischer GF Type 595 Vacuum Breaker Valve 40mm

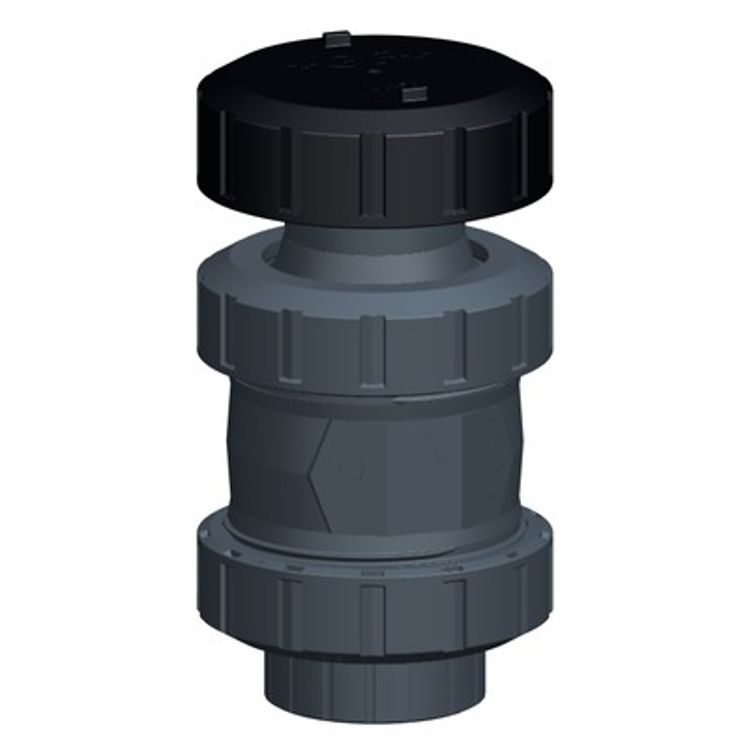

Georg Fischer (GF) Type 595 Vacuum Breaker Valve 40mm

161 595 106
Price: $589.90
Available

The Type 595 Vacuum Breaker Valves from Georg Fischer are exceptionally reliable. The Type 595 Vacuum Breaker Valve will remain closed while a vessel or pipe is filling and while operating. The cone is pressed continually into the profile seal by the spring and opens when there is a vacuum in the pipe or vessel. The 595 valve allows the required volume of air to flow into the vessel, thus equalizing the pressure and preventing a vacuum and associated damage from occurring. Subsequently the valve closes again by spring force.

• Solvent Cement Socket & Threaded Socket Included
• With protection cap up to DN50 made from PP-GF, DN65-100 made from POM
• Spring made of NIMONIC 90 (HALAR Coated)
• Designed for easy installation and removal
• Compact installation length
• Self-acting bleeding

Material - Body: PVC-U (Grey)
Material - Seals: EPDM
Material - Spring: NIMONIC 90 (HALAR Coated)
Pressure Rating: PN16 (1600 kPa)

Dimension d: 40mm
Dimension D: 97mm
Dimension L: 193mm
Dimension t: 35mm

Weight: 760g

Manufacturer: Georg Fischer - Switzerland
