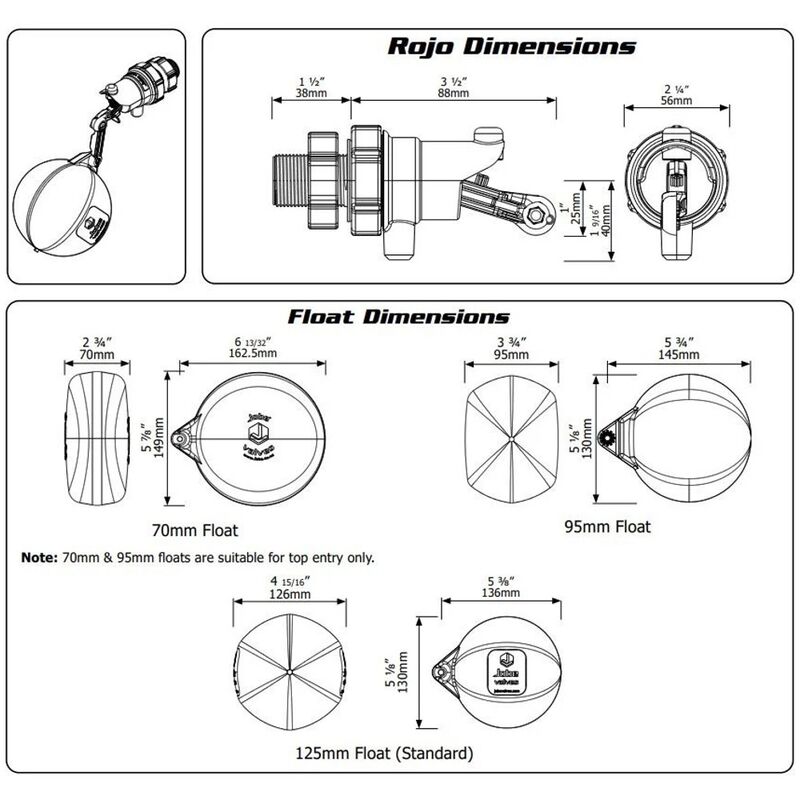

Jobe Rojo Float Valve
20mm (¾")
RJV20

Rojo Float Valves are float operated valves for automatic filling of water storage vessels. The Rojo can be Mounted above or below water level. It is a simple mechanically operated valve. The Rojo is a good choice where its low flow is sufficient and its compact non corrosive construction is beneficial.

• Side, Bottom or Top Mounting
• Valve body screws apart by hand for easy servicing
• Flow stops when unscrewed for servicing
• Supplied with backnut and seal washer
• Built in check valve
• Fully adjustable float angle
• Non corrosive construction
• Has switch to lock valve in off position

Inlet Connection: 20mm (¾") BSP / NPT
Pressure Range: 0 - 1000 kPa (0 - 150 psi)
Flow Rate: 20 L/min (18 L/min @ 600 kPa)
