Jobe Megaflow Float Valve
20mm (¾")
MFV20D

Megaflow Float Valves are float operated valves for use in automatic filling of water troughs. The valve is configured for underwater mounting only. The float is connected to the valve with a nylon cord, this operates a pilot valve, when the water level drops, the pilot valve is opened and the main diaphragm valve is activated. Megaflow is a good choice where its high flow, compact, robust, non corrosive construction is beneficial.

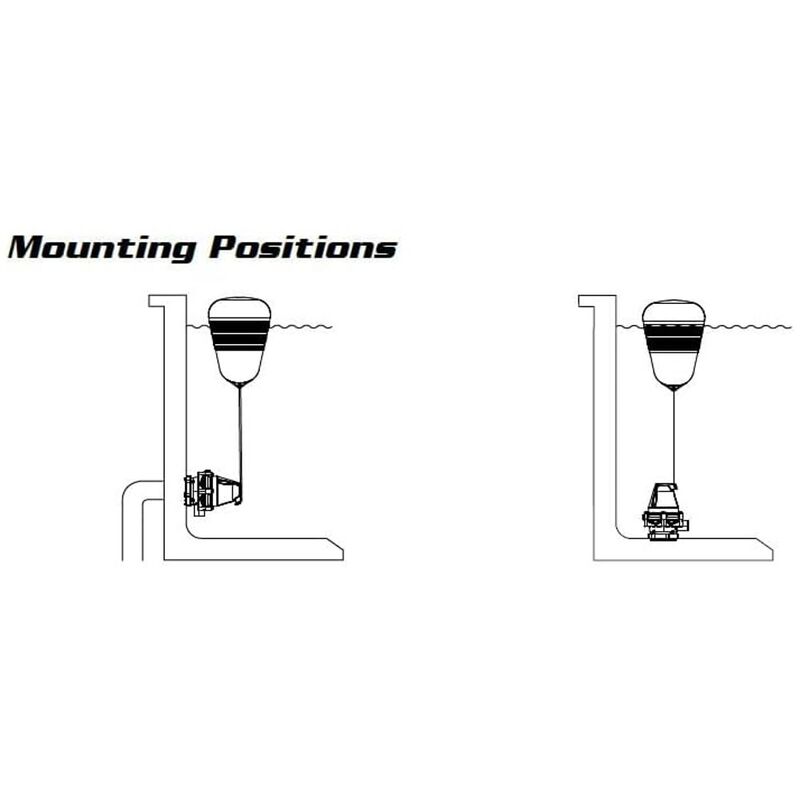

• Side or Bottom Mounting
• 20-60mm water level differential (increases as water pressure increases)
• Positive on/off operation
• Lock off with cord lock
• Inlet filter
• Non corrosive construction
• Less prone to stock damage

Inlet Connection: 20mm (¾") BSP / NPT
Pressure Range: 30 - 1000 kPa (5 - 150 psi)
Flow Rate: 200 L/min (18 L/min @ 600 kPa)
